BLE ESLs

Presenting updated prices becomes easier through the fast linking and far-reaching BLE ESL that receives information from the management system in no time.

BLE ESLs

Presenting updated prices becomes easier through the fast linking and far-reaching BLE ESL that receives information from the management system in no time.

BLE ESLs

Presenting updated prices becomes easier through the fast linking and far-reaching BLE ESL that receives information from the management system in no time.
BLE配图

01

Working Principles

Schematic 2

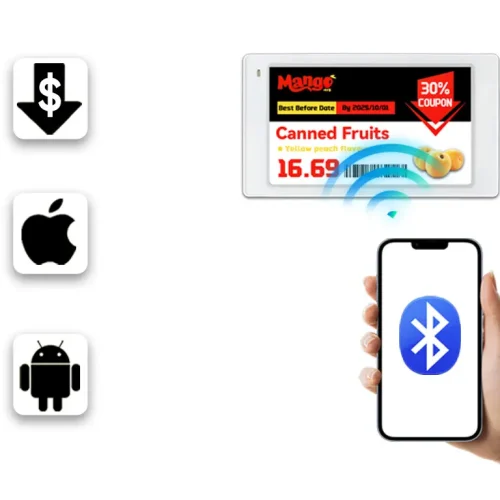

How BLE ESL Solution Works

Our BLE ESLs use Bluetooth 5.0 to transmit images to the label by editing and saving images on the ESL server cloud, effectively storing images for quick reference. From the cloud, the images are transmitted to the mobile device, from which we update the display on the label.

Technical Specification

array(518) { ["title_list"]=> array(7) { [0]=> array(3) { ["title"]=> string(5) "1.54"" ["_id"]=> string(7) "1fc2bc9" ["icon"]=> array(2) { ["value"]=> string(0) "" ["library"]=> string(0) "" } } [1]=> array(3) { ["title"]=> string(5) "2.13"" ["_id"]=> string(7) "0e40020" ["icon"]=> array(2) { ["value"]=> string(0) "" ["library"]=> string(0) "" } } [2]=> array(3) { ["title"]=> string(5) "2.66"" ["_id"]=> string(7) "c7843cb" ["icon"]=> array(2) { ["value"]=> string(0) "" ["library"]=> string(0) "" } } [3]=> array(3) { ["title"]=> string(4) "2.9"" ["_id"]=> string(7) "c536b27" ["icon"]=> array(2) { ["value"]=> string(0) "" ["library"]=> string(0) "" } } [4]=> array(3) { ["title"]=> string(4) "4.2"" ["_id"]=> string(7) "d539b6f" ["icon"]=> array(2) { ["value"]=> string(0) "" ["library"]=> string(0) "" } } [5]=> array(3) { ["title"]=> string(4) "5.8"" ["_id"]=> string(7) "b669c94" ["icon"]=> array(2) { ["value"]=> string(0) "" ["library"]=> string(0) "" } } [6]=> array(3) { ["title"]=> string(4) "7.5"" ["_id"]=> string(7) "f7f29fa" ["icon"]=> array(2) { ["value"]=> string(0) "" ["library"]=> string(0) "" } } } ["style_normal_margin"]=> array(6) { ["unit"]=> string(2) "px" ["top"]=> string(1) "0" ["right"]=> string(1) "5" ["bottom"]=> string(2) "14" ["left"]=> string(1) "5" ["isLinked"]=> bool(false) } ["style_normal_padding"]=> array(6) { ["unit"]=> string(2) "px" ["top"]=> string(1) "5" ["right"]=> string(2) "30" ["bottom"]=> string(1) "5" ["left"]=> string(2) "30" ["isLinked"]=> bool(false) } ["style_normal_color"]=> string(7) "#FFFFFF" ["style_normal_background_background"]=> string(7) "classic" ["style_normal_background_color"]=> string(7) "#94CA45" ["style_hover_background_background"]=> string(7) "classic" ["style_active_background_background"]=> string(7) "classic" ["_z_index"]=> int(9) ["pp_display_conditions"]=> NULL ["__globals__"]=> array(7) { ["style_normal_background_color"]=> string(25) "globals/colors?id=7fec44a" ["style_normal_color"]=> string(25) "globals/colors?id=a3de0e3" ["style_hover_color"]=> string(25) "globals/colors?id=a3de0e3" ["style_hover_background_color"]=> string(25) "globals/colors?id=7fec44a" ["style_active_color"]=> string(25) "globals/colors?id=a3de0e3" ["style_active_background_color"]=> string(25) "globals/colors?id=8ebd2d2" ["style_container_border_color"]=> string(0) "" } ["style_normal_border_radius"]=> array(6) { ["unit"]=> string(2) "px" ["top"]=> string(3) "200" ["right"]=> string(3) "200" ["bottom"]=> string(3) "200" ["left"]=> string(3) "200" ["isLinked"]=> bool(true) } ["style_normal_border_border"]=> string(5) "solid" ["style_normal_border_width"]=> array(6) { ["unit"]=> string(2) "px" ["top"]=> string(1) "2" ["right"]=> string(1) "2" ["bottom"]=> string(1) "2" ["left"]=> string(1) "2" ["isLinked"]=> bool(true) } ["_margin"]=> array(6) { ["unit"]=> string(2) "px" ["top"]=> string(1) "0" ["right"]=> string(2) "40" ["bottom"]=> string(1) "0" ["left"]=> string(2) "40" ["isLinked"]=> bool(false) } ["_element_width"]=> string(7) "initial" ["_element_width_tablet"]=> string(7) "initial" ["_element_custom_width"]=> array(3) { ["unit"]=> string(1) "%" ["size"]=> int(100) ["sizes"]=> array(0) { } } ["_element_custom_width_tablet"]=> array(3) { ["unit"]=> string(1) "%" ["size"]=> int(100) ["sizes"]=> array(0) { } } ["_element_custom_width_mobile"]=> array(3) { ["unit"]=> string(1) "%" ["size"]=> string(0) "" ["sizes"]=> array(0) { } } ["_position"]=> string(8) "absolute" ["_offset_x"]=> array(3) { ["unit"]=> string(2) "px" ["size"]=> int(0) ["sizes"]=> array(0) { } } ["_offset_x_tablet"]=> array(3) { ["unit"]=> string(2) "px" ["size"]=> int(0) ["sizes"]=> array(0) { } } ["_offset_y"]=> array(3) { ["unit"]=> string(1) "%" ["size"]=> int(160) ["sizes"]=> array(0) { } } ["_offset_y_tablet"]=> array(3) { ["unit"]=> string(2) "px" ["size"]=> int(41) ["sizes"]=> array(0) { } } ["pp_elements_tooltip_content"]=> NULL ["style_container_direction"]=> string(7) "horizon" ["style_container_align"]=> string(6) "center" ["style_container_padding"]=> array(6) { ["unit"]=> string(2) "px" ["top"]=> string(0) "" ["right"]=> string(0) "" ["bottom"]=> string(0) "" ["left"]=> string(0) "" ["isLinked"]=> bool(true) } ["style_container_background_background"]=> string(0) "" ["style_container_background_color"]=> NULL ["style_container_background_color_stop"]=> NULL ["style_container_background_color_b"]=> NULL ["style_container_background_color_b_stop"]=> NULL ["style_container_background_gradient_type"]=> NULL ["style_container_background_gradient_angle"]=> NULL ["style_container_background_gradient_position"]=> NULL ["style_container_background_image"]=> NULL ["style_container_background_position"]=> NULL ["style_container_background_xpos"]=> NULL ["style_container_background_ypos"]=> NULL ["style_container_background_attachment"]=> NULL ["style_container_background_repeat"]=> NULL ["style_container_background_size"]=> NULL ["style_container_background_bg_width"]=> NULL ["style_container_background_video_link"]=> NULL ["style_container_background_video_start"]=> NULL ["style_container_background_video_end"]=> NULL ["style_container_background_play_once"]=> NULL ["style_container_background_play_on_mobile"]=> NULL ["style_container_background_privacy_mode"]=> NULL ["style_container_background_video_fallback"]=> NULL ["style_container_background_slideshow_gallery"]=> NULL ["style_container_background_slideshow_loop"]=> NULL ["style_container_background_slideshow_slide_duration"]=> NULL ["style_container_background_slideshow_slide_transition"]=> NULL ["style_container_background_slideshow_transition_duration"]=> NULL ["style_container_background_slideshow_background_size"]=> NULL ["style_container_background_slideshow_background_position"]=> NULL ["style_container_background_slideshow_lazyload"]=> NULL ["style_container_background_slideshow_ken_burns"]=> NULL ["style_container_background_slideshow_ken_burns_zoom_direction"]=> NULL ["style_container_border_border"]=> string(0) "" ["style_container_border_width"]=> NULL ["style_container_border_color"]=> NULL ["style_normal_typography_typography"]=> string(0) "" ["style_normal_typography_font_family"]=> NULL ["style_normal_typography_font_size"]=> NULL ["style_normal_typography_font_weight"]=> NULL ["style_normal_typography_text_transform"]=> NULL ["style_normal_typography_font_style"]=> NULL ["style_normal_typography_text_decoration"]=> NULL ["style_normal_typography_line_height"]=> NULL ["style_normal_typography_letter_spacing"]=> NULL ["style_normal_typography_word_spacing"]=> NULL ["style_normal_background_color_stop"]=> NULL ["style_normal_background_color_b"]=> NULL ["style_normal_background_color_b_stop"]=> NULL ["style_normal_background_gradient_type"]=> NULL ["style_normal_background_gradient_angle"]=> NULL ["style_normal_background_gradient_position"]=> NULL ["style_normal_background_image"]=> array(3) { ["url"]=> string(0) "" ["id"]=> string(0) "" ["size"]=> string(0) "" } ["style_normal_background_position"]=> NULL ["style_normal_background_xpos"]=> NULL ["style_normal_background_ypos"]=> NULL ["style_normal_background_attachment"]=> NULL ["style_normal_background_repeat"]=> NULL ["style_normal_background_size"]=> NULL ["style_normal_background_bg_width"]=> NULL ["style_normal_background_video_link"]=> NULL ["style_normal_background_video_start"]=> NULL ["style_normal_background_video_end"]=> NULL ["style_normal_background_play_once"]=> NULL ["style_normal_background_play_on_mobile"]=> NULL ["style_normal_background_privacy_mode"]=> NULL ["style_normal_background_video_fallback"]=> NULL ["style_normal_background_slideshow_gallery"]=> NULL ["style_normal_background_slideshow_loop"]=> NULL ["style_normal_background_slideshow_slide_duration"]=> NULL ["style_normal_background_slideshow_slide_transition"]=> NULL ["style_normal_background_slideshow_transition_duration"]=> NULL ["style_normal_background_slideshow_background_size"]=> NULL ["style_normal_background_slideshow_background_position"]=> NULL ["style_normal_background_slideshow_lazyload"]=> NULL ["style_normal_background_slideshow_ken_burns"]=> NULL ["style_normal_background_slideshow_ken_burns_zoom_direction"]=> NULL ["style_normal_border_color"]=> string(0) "" ["style_hover_color"]=> string(0) "" ["style_hover_background_color"]=> string(0) "" ["style_hover_background_color_stop"]=> NULL ["style_hover_background_color_b"]=> NULL ["style_hover_background_color_b_stop"]=> NULL ["style_hover_background_gradient_type"]=> NULL ["style_hover_background_gradient_angle"]=> NULL ["style_hover_background_gradient_position"]=> NULL ["style_hover_background_image"]=> array(3) { ["url"]=> string(0) "" ["id"]=> string(0) "" ["size"]=> string(0) "" } ["style_hover_background_position"]=> NULL ["style_hover_background_xpos"]=> NULL ["style_hover_background_ypos"]=> NULL ["style_hover_background_attachment"]=> NULL ["style_hover_background_repeat"]=> NULL ["style_hover_background_size"]=> NULL ["style_hover_background_bg_width"]=> NULL ["style_hover_background_video_link"]=> NULL ["style_hover_background_video_start"]=> NULL ["style_hover_background_video_end"]=> NULL ["style_hover_background_play_once"]=> NULL ["style_hover_background_play_on_mobile"]=> NULL ["style_hover_background_privacy_mode"]=> NULL ["style_hover_background_video_fallback"]=> NULL ["style_hover_background_slideshow_gallery"]=> NULL ["style_hover_background_slideshow_loop"]=> NULL ["style_hover_background_slideshow_slide_duration"]=> NULL ["style_hover_background_slideshow_slide_transition"]=> NULL ["style_hover_background_slideshow_transition_duration"]=> NULL ["style_hover_background_slideshow_background_size"]=> NULL ["style_hover_background_slideshow_background_position"]=> NULL ["style_hover_background_slideshow_lazyload"]=> NULL ["style_hover_background_slideshow_ken_burns"]=> NULL ["style_hover_background_slideshow_ken_burns_zoom_direction"]=> NULL ["style_hover_border_border"]=> string(0) "" ["style_hover_border_width"]=> NULL ["style_hover_border_color"]=> NULL ["style_active_color"]=> string(0) "" ["style_active_background_color"]=> string(0) "" ["style_active_background_color_stop"]=> NULL ["style_active_background_color_b"]=> NULL ["style_active_background_color_b_stop"]=> NULL ["style_active_background_gradient_type"]=> NULL ["style_active_background_gradient_angle"]=> NULL ["style_active_background_gradient_position"]=> NULL ["style_active_background_image"]=> array(3) { ["url"]=> string(0) "" ["id"]=> string(0) "" ["size"]=> string(0) "" } ["style_active_background_position"]=> NULL ["style_active_background_xpos"]=> NULL ["style_active_background_ypos"]=> NULL ["style_active_background_attachment"]=> NULL ["style_active_background_repeat"]=> NULL ["style_active_background_size"]=> NULL ["style_active_background_bg_width"]=> NULL ["style_active_background_video_link"]=> NULL ["style_active_background_video_start"]=> NULL ["style_active_background_video_end"]=> NULL ["style_active_background_play_once"]=> NULL ["style_active_background_play_on_mobile"]=> NULL ["style_active_background_privacy_mode"]=> NULL ["style_active_background_video_fallback"]=> NULL ["style_active_background_slideshow_gallery"]=> NULL ["style_active_background_slideshow_loop"]=> NULL ["style_active_background_slideshow_slide_duration"]=> NULL ["style_active_background_slideshow_slide_transition"]=> NULL ["style_active_background_slideshow_transition_duration"]=> NULL ["style_active_background_slideshow_background_size"]=> NULL ["style_active_background_slideshow_background_position"]=> NULL ["style_active_background_slideshow_lazyload"]=> NULL ["style_active_background_slideshow_ken_burns"]=> NULL ["style_active_background_slideshow_ken_burns_zoom_direction"]=> NULL ["style_active_border_border"]=> string(0) "" ["style_active_border_width"]=> NULL ["style_active_border_color"]=> NULL ["style_tab_icon_size"]=> array(3) { ["unit"]=> string(2) "px" ["size"]=> int(16) ["sizes"]=> array(0) { } } ["style_tab_icon_spacing"]=> array(3) { ["unit"]=> string(2) "px" ["size"]=> int(0) ["sizes"]=> array(0) { } } ["_title"]=> string(0) "" ["_padding"]=> array(6) { ["unit"]=> string(2) "px" ["top"]=> string(0) "" ["right"]=> string(0) "" ["bottom"]=> string(0) "" ["left"]=> string(0) "" ["isLinked"]=> bool(true) } ["_element_width_mobile"]=> string(0) "" ["_element_vertical_align"]=> NULL ["_offset_orientation_h"]=> string(5) "start" ["_offset_x_end"]=> NULL ["_offset_orientation_v"]=> string(5) "start" ["_offset_y_end"]=> NULL ["_element_id"]=> string(0) "" ["_css_classes"]=> string(0) "" ["pp_display_conditions_enable"]=> string(0) "" ["pp_display_conditions_output"]=> NULL ["pp_display_conditions_relation"]=> NULL ["pp_wrapper_link_enable"]=> string(0) "" ["pp_wrapper_link"]=> NULL ["pp_custom_cursor_enable"]=> string(0) "" ["pp_custom_cursor_target"]=> NULL ["pp_custom_cursor_css_selector"]=> NULL ["pp_custom_cursor_type"]=> NULL ["pp_custom_cursor_icon"]=> NULL ["pp_custom_cursor_text"]=> NULL ["pp_custom_cursor_left_offset"]=> NULL ["pp_custom_cursor_top_offset"]=> NULL ["pp_custom_cursor_text_typography_typography"]=> NULL ["pp_custom_cursor_text_typography_font_family"]=> NULL ["pp_custom_cursor_text_typography_font_size"]=> NULL ["pp_custom_cursor_text_typography_font_weight"]=> NULL ["pp_custom_cursor_text_typography_text_transform"]=> NULL ["pp_custom_cursor_text_typography_font_style"]=> NULL ["pp_custom_cursor_text_typography_text_decoration"]=> NULL ["pp_custom_cursor_text_typography_line_height"]=> NULL ["pp_custom_cursor_text_typography_letter_spacing"]=> NULL ["pp_custom_cursor_text_typography_word_spacing"]=> NULL ["pp_custom_cursor_text_color"]=> NULL ["pp_custom_cursor_text_bg_background"]=> NULL ["pp_custom_cursor_text_bg_color"]=> NULL ["pp_custom_cursor_text_bg_color_stop"]=> NULL ["pp_custom_cursor_text_bg_color_b"]=> NULL ["pp_custom_cursor_text_bg_color_b_stop"]=> NULL ["pp_custom_cursor_text_bg_gradient_type"]=> NULL ["pp_custom_cursor_text_bg_gradient_angle"]=> NULL ["pp_custom_cursor_text_bg_gradient_position"]=> NULL ["pp_custom_cursor_text_bg_position"]=> NULL ["pp_custom_cursor_text_bg_xpos"]=> NULL ["pp_custom_cursor_text_bg_ypos"]=> NULL ["pp_custom_cursor_text_bg_attachment"]=> NULL ["pp_custom_cursor_text_bg_repeat"]=> NULL ["pp_custom_cursor_text_bg_size"]=> NULL ["pp_custom_cursor_text_bg_bg_width"]=> NULL ["pp_custom_cursor_text_bg_video_link"]=> NULL ["pp_custom_cursor_text_bg_video_start"]=> NULL ["pp_custom_cursor_text_bg_video_end"]=> NULL ["pp_custom_cursor_text_bg_play_once"]=> NULL ["pp_custom_cursor_text_bg_play_on_mobile"]=> NULL ["pp_custom_cursor_text_bg_privacy_mode"]=> NULL ["pp_custom_cursor_text_bg_video_fallback"]=> NULL ["pp_custom_cursor_text_bg_slideshow_gallery"]=> NULL ["pp_custom_cursor_text_bg_slideshow_loop"]=> NULL ["pp_custom_cursor_text_bg_slideshow_slide_duration"]=> NULL ["pp_custom_cursor_text_bg_slideshow_slide_transition"]=> NULL ["pp_custom_cursor_text_bg_slideshow_transition_duration"]=> NULL ["pp_custom_cursor_text_bg_slideshow_background_size"]=> NULL ["pp_custom_cursor_text_bg_slideshow_background_position"]=> NULL ["pp_custom_cursor_text_bg_slideshow_lazyload"]=> NULL ["pp_custom_cursor_text_bg_slideshow_ken_burns"]=> NULL ["pp_custom_cursor_text_bg_slideshow_ken_burns_zoom_direction"]=> NULL ["pp_custom_cursor_text_border_border"]=> NULL ["pp_custom_cursor_text_border_width"]=> NULL ["pp_custom_cursor_text_border_color"]=> NULL ["pp_custom_cursor_text_border_radius"]=> NULL ["pp_custom_cursor_text_padding"]=> NULL ["pp_elements_tooltip_enable"]=> string(0) "" ["pp_elements_tooltip_target"]=> NULL ["pp_elements_tooltip_selector"]=> NULL ["pp_elements_tooltip_trigger"]=> NULL ["pp_elements_tooltip_position"]=> NULL ["pp_elements_tooltip_arrow"]=> NULL ["pp_elements_tooltip_animation"]=> NULL ["pp_elements_tooltip_distance"]=> NULL ["pp_elements_tooltip_zindex"]=> NULL ["pp_elements_tooltip_bg_color"]=> NULL ["pp_elements_tooltip_color"]=> NULL ["pp_elements_tooltip_typography_typography"]=> NULL ["pp_elements_tooltip_typography_font_family"]=> NULL ["pp_elements_tooltip_typography_font_size"]=> NULL ["pp_elements_tooltip_typography_font_weight"]=> NULL ["pp_elements_tooltip_typography_text_transform"]=> NULL ["pp_elements_tooltip_typography_font_style"]=> NULL ["pp_elements_tooltip_typography_text_decoration"]=> NULL ["pp_elements_tooltip_typography_line_height"]=> NULL ["pp_elements_tooltip_typography_letter_spacing"]=> NULL ["pp_elements_tooltip_typography_word_spacing"]=> NULL ["pp_elements_tooltip_box_shadow_box_shadow_type"]=> NULL ["pp_elements_tooltip_box_shadow_box_shadow"]=> NULL ["pp_elements_tooltip_box_shadow_box_shadow_position"]=> NULL ["pp_elements_tooltip_border_border"]=> NULL ["pp_elements_tooltip_border_width"]=> NULL ["pp_elements_tooltip_border_color"]=> NULL ["pp_elements_tooltip_border_radius"]=> NULL ["pp_elements_tooltip_padding"]=> NULL ["pp_elements_tooltip_width"]=> NULL ["motion_fx_motion_fx_scrolling"]=> string(0) "" ["motion_fx_translateY_effect"]=> NULL ["motion_fx_translateY_direction"]=> NULL ["motion_fx_translateY_speed"]=> NULL ["motion_fx_translateY_affectedRange"]=> NULL ["motion_fx_translateX_effect"]=> NULL ["motion_fx_translateX_direction"]=> NULL ["motion_fx_translateX_speed"]=> NULL ["motion_fx_translateX_affectedRange"]=> NULL ["motion_fx_opacity_effect"]=> NULL ["motion_fx_opacity_direction"]=> NULL ["motion_fx_opacity_level"]=> NULL ["motion_fx_opacity_range"]=> NULL ["motion_fx_blur_effect"]=> NULL ["motion_fx_blur_direction"]=> NULL ["motion_fx_blur_level"]=> NULL ["motion_fx_blur_range"]=> NULL ["motion_fx_rotateZ_effect"]=> NULL ["motion_fx_rotateZ_direction"]=> NULL ["motion_fx_rotateZ_speed"]=> NULL ["motion_fx_rotateZ_affectedRange"]=> NULL ["motion_fx_scale_effect"]=> NULL ["motion_fx_scale_direction"]=> NULL ["motion_fx_scale_speed"]=> NULL ["motion_fx_scale_range"]=> NULL ["motion_fx_transform_origin_x"]=> NULL ["motion_fx_transform_origin_y"]=> NULL ["motion_fx_devices"]=> NULL ["motion_fx_range"]=> NULL ["motion_fx_motion_fx_mouse"]=> string(0) "" ["motion_fx_mouseTrack_effect"]=> NULL ["motion_fx_mouseTrack_direction"]=> NULL ["motion_fx_mouseTrack_speed"]=> NULL ["motion_fx_tilt_effect"]=> NULL ["motion_fx_tilt_direction"]=> NULL ["motion_fx_tilt_speed"]=> NULL ["sticky"]=> string(0) "" ["sticky_on"]=> NULL ["sticky_offset"]=> NULL ["sticky_offset_tablet"]=> NULL ["sticky_offset_mobile"]=> NULL ["sticky_effects_offset"]=> NULL ["sticky_effects_offset_tablet"]=> NULL ["sticky_effects_offset_mobile"]=> NULL ["sticky_parent"]=> NULL ["_animation"]=> string(0) "" ["_animation_tablet"]=> string(0) "" ["_animation_mobile"]=> string(0) "" ["animation_duration"]=> NULL ["_animation_delay"]=> NULL ["_transform_rotate_popover"]=> string(0) "" ["_transform_rotateZ_effect"]=> NULL ["_transform_rotateZ_effect_tablet"]=> NULL ["_transform_rotateZ_effect_mobile"]=> NULL ["_transform_rotate_3d"]=> NULL ["_transform_rotateX_effect"]=> NULL ["_transform_rotateX_effect_tablet"]=> NULL ["_transform_rotateX_effect_mobile"]=> NULL ["_transform_rotateY_effect"]=> NULL ["_transform_rotateY_effect_tablet"]=> NULL ["_transform_rotateY_effect_mobile"]=> NULL ["_transform_perspective_effect"]=> NULL ["_transform_perspective_effect_tablet"]=> NULL ["_transform_perspective_effect_mobile"]=> NULL ["_transform_translate_popover"]=> string(0) "" ["_transform_translateX_effect"]=> NULL ["_transform_translateX_effect_tablet"]=> NULL ["_transform_translateX_effect_mobile"]=> NULL ["_transform_translateY_effect"]=> NULL ["_transform_translateY_effect_tablet"]=> NULL ["_transform_translateY_effect_mobile"]=> NULL ["_transform_scale_popover"]=> string(0) "" ["_transform_keep_proportions"]=> string(3) "yes" ["_transform_scale_effect"]=> NULL ["_transform_scale_effect_tablet"]=> NULL ["_transform_scale_effect_mobile"]=> NULL ["_transform_scaleX_effect"]=> NULL ["_transform_scaleX_effect_tablet"]=> NULL ["_transform_scaleX_effect_mobile"]=> NULL ["_transform_scaleY_effect"]=> NULL ["_transform_scaleY_effect_tablet"]=> NULL ["_transform_scaleY_effect_mobile"]=> NULL ["_transform_skew_popover"]=> string(0) "" ["_transform_skewX_effect"]=> NULL ["_transform_skewX_effect_tablet"]=> NULL ["_transform_skewX_effect_mobile"]=> NULL ["_transform_skewY_effect"]=> NULL ["_transform_skewY_effect_tablet"]=> NULL ["_transform_skewY_effect_mobile"]=> NULL ["_transform_flipX_effect"]=> string(0) "" ["_transform_flipY_effect"]=> string(0) "" ["_transform_rotate_popover_hover"]=> string(0) "" ["_transform_rotateZ_effect_hover"]=> NULL ["_transform_rotateZ_effect_hover_tablet"]=> NULL ["_transform_rotateZ_effect_hover_mobile"]=> NULL ["_transform_rotate_3d_hover"]=> NULL ["_transform_rotateX_effect_hover"]=> NULL ["_transform_rotateX_effect_hover_tablet"]=> NULL ["_transform_rotateX_effect_hover_mobile"]=> NULL ["_transform_rotateY_effect_hover"]=> NULL ["_transform_rotateY_effect_hover_tablet"]=> NULL ["_transform_rotateY_effect_hover_mobile"]=> NULL ["_transform_perspective_effect_hover"]=> NULL ["_transform_perspective_effect_hover_tablet"]=> NULL ["_transform_perspective_effect_hover_mobile"]=> NULL ["_transform_translate_popover_hover"]=> string(0) "" ["_transform_translateX_effect_hover"]=> NULL ["_transform_translateX_effect_hover_tablet"]=> NULL ["_transform_translateX_effect_hover_mobile"]=> NULL ["_transform_translateY_effect_hover"]=> NULL ["_transform_translateY_effect_hover_tablet"]=> NULL ["_transform_translateY_effect_hover_mobile"]=> NULL ["_transform_scale_popover_hover"]=> string(0) "" ["_transform_keep_proportions_hover"]=> string(3) "yes" ["_transform_scale_effect_hover"]=> NULL ["_transform_scale_effect_hover_tablet"]=> NULL ["_transform_scale_effect_hover_mobile"]=> NULL ["_transform_scaleX_effect_hover"]=> NULL ["_transform_scaleX_effect_hover_tablet"]=> NULL ["_transform_scaleX_effect_hover_mobile"]=> NULL ["_transform_scaleY_effect_hover"]=> NULL ["_transform_scaleY_effect_hover_tablet"]=> NULL ["_transform_scaleY_effect_hover_mobile"]=> NULL ["_transform_skew_popover_hover"]=> string(0) "" ["_transform_skewX_effect_hover"]=> NULL ["_transform_skewX_effect_hover_tablet"]=> NULL ["_transform_skewX_effect_hover_mobile"]=> NULL ["_transform_skewY_effect_hover"]=> NULL ["_transform_skewY_effect_hover_tablet"]=> NULL ["_transform_skewY_effect_hover_mobile"]=> NULL ["_transform_flipX_effect_hover"]=> string(0) "" ["_transform_flipY_effect_hover"]=> string(0) "" ["_transform_transition_hover"]=> array(3) { ["unit"]=> string(2) "px" ["size"]=> string(0) "" ["sizes"]=> array(0) { } } ["motion_fx_transform_x_anchor_point"]=> NULL ["motion_fx_transform_y_anchor_point"]=> NULL ["_background_background"]=> string(0) "" ["_background_color"]=> NULL ["_background_color_stop"]=> NULL ["_background_color_b"]=> NULL ["_background_color_b_stop"]=> NULL ["_background_gradient_type"]=> NULL ["_background_gradient_angle"]=> NULL ["_background_gradient_position"]=> NULL ["_background_image"]=> NULL ["_background_image_tablet"]=> NULL ["_background_image_mobile"]=> NULL ["_background_position"]=> NULL ["_background_xpos"]=> NULL ["_background_ypos"]=> NULL ["_background_attachment"]=> NULL ["_background_repeat"]=> NULL ["_background_size"]=> NULL ["_background_bg_width"]=> NULL ["_background_video_link"]=> NULL ["_background_video_start"]=> NULL ["_background_video_end"]=> NULL ["_background_play_once"]=> NULL ["_background_play_on_mobile"]=> NULL ["_background_privacy_mode"]=> NULL ["_background_video_fallback"]=> NULL ["_background_slideshow_gallery"]=> NULL ["_background_slideshow_loop"]=> NULL ["_background_slideshow_slide_duration"]=> NULL ["_background_slideshow_slide_transition"]=> NULL ["_background_slideshow_transition_duration"]=> NULL ["_background_slideshow_background_size"]=> NULL ["_background_slideshow_background_position"]=> NULL ["_background_slideshow_lazyload"]=> NULL ["_background_slideshow_ken_burns"]=> NULL ["_background_slideshow_ken_burns_zoom_direction"]=> NULL ["_background_hover_background"]=> string(0) "" ["_background_hover_color"]=> NULL ["_background_hover_color_stop"]=> NULL ["_background_hover_color_b"]=> NULL ["_background_hover_color_b_stop"]=> NULL ["_background_hover_gradient_type"]=> NULL ["_background_hover_gradient_angle"]=> NULL ["_background_hover_gradient_position"]=> NULL ["_background_hover_image"]=> NULL ["_background_hover_image_tablet"]=> NULL ["_background_hover_image_mobile"]=> NULL ["_background_hover_position"]=> NULL ["_background_hover_xpos"]=> NULL ["_background_hover_ypos"]=> NULL ["_background_hover_attachment"]=> NULL ["_background_hover_repeat"]=> NULL ["_background_hover_size"]=> NULL ["_background_hover_bg_width"]=> NULL ["_background_hover_video_link"]=> NULL ["_background_hover_video_start"]=> NULL ["_background_hover_video_end"]=> NULL ["_background_hover_play_once"]=> NULL ["_background_hover_play_on_mobile"]=> NULL ["_background_hover_privacy_mode"]=> NULL ["_background_hover_video_fallback"]=> NULL ["_background_hover_slideshow_gallery"]=> NULL ["_background_hover_slideshow_loop"]=> NULL ["_background_hover_slideshow_slide_duration"]=> NULL ["_background_hover_slideshow_slide_transition"]=> NULL ["_background_hover_slideshow_transition_duration"]=> NULL ["_background_hover_slideshow_background_size"]=> NULL ["_background_hover_slideshow_background_position"]=> NULL ["_background_hover_slideshow_lazyload"]=> NULL ["_background_hover_slideshow_ken_burns"]=> NULL ["_background_hover_slideshow_ken_burns_zoom_direction"]=> NULL ["_background_hover_transition"]=> array(3) { ["unit"]=> string(2) "px" ["size"]=> string(0) "" ["sizes"]=> array(0) { } } ["_border_border"]=> string(0) "" ["_border_width"]=> NULL ["_border_color"]=> NULL ["_border_radius"]=> array(6) { ["unit"]=> string(2) "px" ["top"]=> string(0) "" ["right"]=> string(0) "" ["bottom"]=> string(0) "" ["left"]=> string(0) "" ["isLinked"]=> bool(true) } ["_box_shadow_box_shadow_type"]=> string(0) "" ["_box_shadow_box_shadow"]=> NULL ["_box_shadow_box_shadow_position"]=> NULL ["_border_hover_border"]=> string(0) "" ["_border_hover_width"]=> NULL ["_border_hover_color"]=> NULL ["_border_radius_hover"]=> array(6) { ["unit"]=> string(2) "px" ["top"]=> string(0) "" ["right"]=> string(0) "" ["bottom"]=> string(0) "" ["left"]=> string(0) "" ["isLinked"]=> bool(true) } ["_box_shadow_hover_box_shadow_type"]=> string(0) "" ["_box_shadow_hover_box_shadow"]=> NULL ["_box_shadow_hover_box_shadow_position"]=> NULL ["_border_hover_transition"]=> array(3) { ["unit"]=> string(2) "px" ["size"]=> string(0) "" ["sizes"]=> array(0) { } } ["_mask_switch"]=> string(0) "" ["_mask_shape"]=> NULL ["_mask_image"]=> NULL ["_mask_notice"]=> NULL ["_mask_size"]=> NULL ["_mask_size_scale"]=> NULL ["_mask_position"]=> NULL ["_mask_position_x"]=> NULL ["_mask_position_y"]=> NULL ["_mask_repeat"]=> NULL ["hide_desktop"]=> string(0) "" ["hide_tablet"]=> string(0) "" ["hide_mobile"]=> string(0) "" ["_attributes"]=> string(0) "" ["custom_css"]=> string(0) "" }
  • 1.54"
  • 2.13"
  • 2.66"
  • 2.9"
  • 4.2"
  • 5.8"
  • 7.5"

02

Electronic Shelf Labels

1.54 2
Shell Dimensions(W*H*D) 49.0*37.6*13.0(mm)
Colors White/Customized
Display Active Area(H*V) 27.5*27.5(mm)
Resolution(H*V) 200*200
Pixel Colors BW/BWR
Technology Dot-matrix E-ink Epaper Display
Viewable Angle Close to 180°
Communication Info. Frequency Bluetooth
Protocol Private Protocol
Distance 5-10m
Success Rate 100%
Battery Type & Quantity CR 2450*1
Life ≥6 years
Replacement Available Option
Operating Ambient Temperature 0°C~40°C
Humidity 45%~70%RH
2.13
Shell Dimensions(W*H*D) 71.3*35.6*12.0(mm)
Colors White/Customized
Display Active Area(H*V) 48.6*23.7(mm)
Resolution(H*V) 250*122
Pixel Colors BW/BWR
Technology Dot-matrix E-ink Epaper Display
Viewable Angle Close to 180°
Communication Info. Frequency Bluetooth
Protocol Private Protocol
Distance 5-10m
Success Rate 100%
Battery Type & Quantity CR 2450*2
Life ≥6 years
Replacement Available Option
Operating Ambient Temperature 0°C~40°C
Humidity 45%~70%RH
2.66 1
Shell Dimensions(W*H*D) 91.2*41.0*12.0(mm)
Colors White/Black/Customized
Display Active Area(H*V) 66.9*29.1(mm)
Resolution(H*V) 296*152
Pixel Colors BW/BWR/BWY
Technology Dot-matrix E-ink Epaper Display
Viewable Angle Close to 180°
Communication Info. Frequency Bluetooth
Protocol Private Protocol
Distance 5-10m
Success Rate 100%
Battery Type & Quantity CR 2450*2
Life ≥6 years
Replacement Available Option
Operating Ambient Temperature 0℃~40℃
Humidity 45%~70%RH
2.9 2 3
Shell Dimensions(W*H*D) 99.2*89*12.0(mm)
Colors White/Black/Customized
Display Active Area(H*V) 84.8*63.6(mm)
Resolution(H*V) 400*300
Pixel Colors BW/BWR/BWY
Technology Dot-matrix E-ink Epaper Display
Viewable Angle Close to 180°
Communication Info. Frequency Bluetooth
Protocol Private Protocol
Distance 5-10m
Success Rate 100%
Battery Type & Quantity CR 2450*2
Life ≥6 years
Replacement Available Option
Operating Ambient Temperature 0℃~40℃
Humidity 45%~70%RH
4.2 1
Shell Dimensions(W*H*D) 99.2*89*12.0(mm)
Colors White/Black/Customized
Display Active Area(H*V) 84.8*63.6(mm)
Resolution(H*V) 400*300
Pixel Colors BW/BWR/BWY
Technology Dot-matrix E-ink Epaper Display
Viewable Angle Close to 180°
Communication Info. Frequency Bluetooth
Protocol Private Protocol
Distance 5-10m
Success Rate 100%
Battery Type & Quantity CR 2450*2
Life ≥6 years
Replacement Available Option
Operating Ambient Temperature 0℃~40℃
Humidity 45%~70%RH
5.8 1
Shell Dimensions(W*H*D) 134.5*114.0*9.0(mm)
Colors White/Customized
Display Active Area(H*V) 118.8*88.2(mm)
Resolution(H*V) 648*480
Pixel Colors BW/BWR
Technology Dot-matrix E-ink Epaper Display
Viewable Angle Close to 180°
Communication Info. Frequency Bluetooth
Protocol Private Protocol
Distance 5-10m
Success Rate 100%
Battery Type & Quantity CR 2450*6
Life ≥6 years
Replacement Available Option
Operating Ambient Temperature 0℃~40℃
Humidity 45%~70%RH
7.5 2
Shell Dimensions(W*H*D) 178.0*127.0*9.0(mm)
Colors White/Customized
Display Active Area(H*V) 163.2*97.9(mm)
Resolution(H*V) 800*480
Pixel Colors BW/BWR
Technology Dot-matrix E-ink Epaper Display
Viewable Angle Close to 180°
Communication Info. Frequency Bluetooth
Protocol Private Protocol
Distance 5-10m
Success Rate 100%
Battery Type & Quantity CR 2430*6
Life ≥6 years
Replacement Available Option
Operating Ambient Temperature 0℃~40℃
Humidity 45%~70%RH

03

APP

How to update the BLE labels?

01

Enter the APP interface Select refresh

02

Click to scan barcode

03

Start scanning

04

Choose a template

05

Start to replace

06

Finish

Download the PDF to see more details
